The Z31 came with three different manual 5 speed transmissions.All manual non-turbos used a 5 speed Nissan transmission (FS5W71C) which is quite reliable.The 84-86 manual turbos used a Borg-Warner T-5 5 speed (FS5R90A).The 87-89 manual turbos use the same nissan truck transmission found in z32 turbos, trucks, pathfinders, etc (FS5R30A).All manual transissions have synchros on all forward gears.If you change the gear oil in your transmission on a semi-regular basis it should give you absolutely no trouble at all.That is, provided you don't beat the poop out of it.

It has been generally regarded that the FS5R90A transmission is not very strong.People seem to blow these up with as little as 300 horsepower.The good side is they are cheap to rebuild.Rebuild kits are as cheap as $125 on ebay.Any short throw shifter made for the 5-speed Mustang will work fine in this transmission.

The second strongest Z31 manual transmission is the FS5W71C.This transmission is used in the 240SX, 180SX, Silvia, etc.A few people who have blown up their FS5R90As have swapped to this transmission and not had problems.A lot of 240SX owners have this transmission mated to their SR20DETs and KA24DETs running 400+ hp with no problems.Any short throw shifter made for the 240SX (S12, S13, S14, S15) will fit perfectly in this transmission.

The king daddy of the Z31 manual transmissions is the FS5R30A.This transmission is the same design as the transmission used in the Z32 300ZX models.Only the gear ratios are different.There are Z32s running these transmissions with well over 600 horsepower and are not blowing them up.There are supposedly a few short throw shifters that will work with this transmission.They are usually the cheaper/generic short throws made for the FS5W71C.A lot of people take the stick apart and cut a small section out of it to give the shifter a shorter height.This does shorten the distance travelled, but it does not actually shorten the throw.

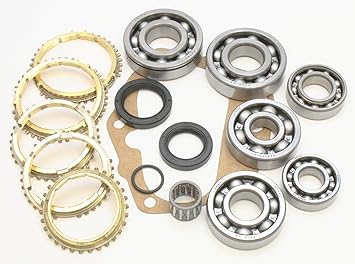

Fs5w71c, fs5w71e, & fs5w71h f4 w71 4 & 5-speed manual transmissions: rebuild kit professional quality bk133 rebuild kit includes: premium roller bearings by nachi of japan: input bearing main shaft bearing main shaft bearing (rear) cluster bearings: front, center, & rear retainer gasket impact pocket needle bearing front & rear seals this kit includes a 61mm o.d. (2.440') countershaft bearing. FS5W71C: 5 Speed with B22-19UR or 22BC065SX front countershaft bearing. We supply a rebuild kits by application for FS5W71A, FS5W71C, FS5W71E, FS5W71Gand FS5W71H. The FS5W71 is a five speed, RWD or 4WD transmission. The FS5W71 is Nissan design, split-case aluminum design, This unit has tapered bearings except for the rear mainshaft and rear countershaft bearings. Syncro rings in the FS5W71 are aluminum ring/pin. Now available is this Nissan FS5W71C 5 SPEED manual transmission. This transmission was removed from a running 89' S13 240SX. The transmission includes the clutch fork, release bearing, clutch slave, output spline for the driveshaft, the shift lever and boot with a small tear.

There are several different manufacturers of lighter flywheels for the Z31.The non-turbo and the 84-86 turbo came with a 240mm flywheel.The 87-89 turbo came with a 250mm flywheel.This isn't the overall diameter of the flywheel, it is the diameter of the clutch surface area.The overall diameter of the flywheel is the same.Different manufacturers have made these different ways.Some will include the different mounting holes for the different sized/spaced clutches.

Automatics suck, but there are some people who still insist on buying them.All automatic Z31s used the 4N71B transmission.Change the fluid every so often, and check the level every time you change your engine oil.Also, if you overheat your car for whatever reson and it has an automatic, CHANGE THE TRANSMISSION FLUID IMMEDIATELY!!!If you don't, your transmission will blow up as a result of the fluid getting overheated in the cooler and burning inside the transmision, and this is bad.Of course, you could avoid this by putting in a manual transmission, and have more power and economy to boot!The overdrive switch in the automatics has a temperature sensor that does not allow the transmission to shift into overdrive until it is sufficiently warmed up to avoid possible damage. Level 10 makes an upgrade that will allow your transmission to hold 500+ hp.Click here for more details.

All Z31 transmissions are completely interchangable.They have no problems bolting up to the motor.The problem comes in when you try to mount the driveshaft.Each transmission has it's own output shaft size.Finding the appropriate driveshaft for a two seater is no problem.Just find another two seater that had the same transmission and take that driveshaft.If you have a four seater, you're going to have a more difficult time.Only in Canada did the North American market get a turbo four seater.And almost all of them were automatics.So you'll need to find the appropriate driveshaft for the transmission you just bought and have the driveshaft lengthened.If you get a FS5W71C, there are plenty of 2+2 5 speed models around.The only thing left is to determine if your differential companion flange is correct for the driveshaft.
